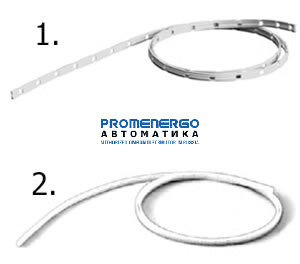

Чувствительная тесьма OMRON F03-16PE, F03-16PT



1)

SUS316 used for core and polyethylene used for sheath to ensure high resistance to both acidic and alkaline liquids.
Sensing Band Stickers that use the same material as the Sensing Band’s insulating resin are available in 2 types: adhesive-
tape type and screw type.

2)

Compared to the F03-16PE (polyethylene), the F03-16PT has higher resistance to both high temperatures and chemicals.
Small holes enable the detection of leakage even when installed upside down.



Модель F03-16PE F03-16PT
Оболочка Polyethylene Fluoroplastic
Сердечник Stainless steel SUS316 Stainless steel SUS316
Рабочая температура –15 to 55°C –50 to 200°C
Применение

Early detection of water leakage in computer rooms etc.

Used in locations with low-conductivity materials.

For detection of solvent/chemical leakage inside semiconductor wafer scrubber equipment.

For high temperature liquid leakage detection.

Вес 16 g (1 m) 16 g (1 m)
Техническая документация OMRON F03-16PE, F03-16PT
